Data Logger

Engineered for flexibility, the Moku Data Logger lets you log data directly to an SD card, a networked disk, or internal memory with sampling rates of up to 10 MSa/s. On Moku:Pro, input noise is measured at 30 nV/√Hz at 100 Hz with our blended ADC technology, providing ultra-low-noise data logging from acoustic to RF frequencies. Moku:Pro and Moku:Lab are equipped with 10 MHz clock synchronization I/O, allowing flexible integration with other electronics.

[lq_centered_autoplay_video image=”6043″ video_url=”https://stage.liquidinstruments.com/wp-content/uploads/2021/06/mokupro-dl-hero.mp4″]

[lq_centered_text]The Moku Data Logger is easy to use and offers a range of advanced capabilities to optimize your experiment — at the most cost-effective price in the industry.[/lq_centered_text]

[lq_centered_text]

Key benefits

With up to four independent channels, a maximum acquisition rate up to 10 MSa/s, and an optional precision acquisition mode, you can expect more from the Moku Data Logger.[/lq_centered_text]

[lq_image_text_top_bottom image=”14461″]

Versatile data logging with flexible export options

It’s easy to log critical voltage data on each independent input channel. Log to internal memory, a solid-state drive, or an SD card depending on your hardware platform. Once you’re done, export data directly to your computer or cloud-based storage.

[liquid-button href=”/resources/software-utilities/ipad-app/” style=”filled blue”]Try the software[/liquid-button][/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”14459″]

Drive your signal and log the output

With the embedded Waveform Generator, choose from five prebuilt waveforms and generate on up to four output channels, all within the Data Logger instrument.[/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”6043″]

Set it and forget it with advanced scheduling and triggered start

Schedule a log to start after a delay of up to 10 days, or set up a trigger event to start your logging session. Make long-term measurements limited only by the internal storage of the device or the size of your SD card.[/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”14458″]

Export your data how you want it, where you want it

Easily export data to an SD card, Dropbox, email, iCloud, or the iPad “My Files” folder. Log data to binary files and convert to plain text (CSV) or MATLAB (.MAT) files using the LI file converter.[/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”11278″]

Engineered to work seamlessly with your favorite APIs

API integration with MATLAB, LabVIEW, and more allows straightforward automation of your Moku device in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or to your preferred cloud app. You can also send work to yourself or colleagues within the Moku app.[/lq_image_text_top_bottom]

[lq_centered_text]

Engineered for demanding applications

You can’t innovate for the future when your test equipment is stuck in the past. Use the Moku Data Logger to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.[/lq_centered_text]

Embedded instrument data logging

Environmental monitoring

Sensor data recording

Temperature monitoring

Vibration analysis

Integrates seamlessly with your tech stack

[lq_centered_text]

Tech specs and docs

The Moku Data Logger runs on Moku:Pro, Moku:Lab, and Moku:Go. Compare the specifications to choose the right device for your application.[/lq_centered_text]

[lq_centered_image image=”8125″]

[lq_centered_image image=”5044″]

[lq_centered_image image=”10094″]

[lq_centered_text]

Moku:Pro

[liquid-button href=”/products/hardware-platforms/mokupro/” target=”_blank” style=”filled blue”]Learn more[/liquid-button][/lq_centered_text]

[lq_centered_text]

Moku:Lab

[liquid-button href=”/products/hardware-platforms/mokulab/” target=”_blank” style=”filled blue”]Learn more[/liquid-button][/lq_centered_text]

[lq_centered_text]

Moku:Go

[liquid-button href=”/products/hardware-platforms/mokugo/” target=”_blank” style=”filled blue”]Learn more[/liquid-button][/lq_centered_text]

Technical specifications

Channels

[lq_centered_text]4[/lq_centered_text]

[lq_centered_text]2[/lq_centered_text]

Acquisition rate

[lq_centered_text]10 MSa/s with one channel enabled
5 MSa/s with two channels enabled
2.5 MSa/s with four channels enabled[/lq_centered_text]

[lq_centered_text]250 kSa/s with one channel enabled
125 kSa/s with both channels enabled[/lq_centered_text]

[lq_centered_text]1 MSa/s with one channel enabled
500 kSa/s with both channels enabled[/lq_centered_text]

Input range

[lq_centered_text]-20 V to 20 V[/lq_centered_text]

[lq_centered_text]-5 V to 5 V[/lq_centered_text]

[lq_centered_text]± 5 V to ± 25 V[/lq_centered_text]

Input impedance

[lq_centered_text]50 Ω/1 MΩ[/lq_centered_text]

[lq_centered_text]1 MΩ[/lq_centered_text]

Logging options

[lq_centered_text]Solid-state drive (240 GB)
API data streaming[/lq_centered_text]

[lq_centered_text]

SD card
API data streaming

[/lq_centered_text]

[lq_centered_text]Internal memory (8 GB)
API data streaming[/lq_centered_text]

Software & utilities

[lq_centered_text]iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]iPadOS
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

Documentation

Datasheets

User manuals

Specs

[lq_centered_image image=”8125″][lq_centered_text]

Moku:Pro

Data Logger

Technical specifications

Channels
4[/lq_centered_text]

[lq_centered_text]Acquisition rate
10 MSa/s with one channel enabled
5 MSa/s with two channels enabled
2.5 MSa/s with four channels enabled[/lq_centered_text]

[lq_centered_text]Input range
-20 V to 20 V[/lq_centered_text]

[lq_centered_text]Input impedance
50 Ω/1 MΩ[/lq_centered_text]

[lq_centered_text]Logging options
Solid-state drive (240 GB)
API data streaming[/lq_centered_text]

[lq_centered_text]Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]

Documentation

Datasheets

[/lq_centered_text]

[lq_centered_text]User manuals

[/lq_centered_text]

[lq_centered_text]Specs

[/lq_centered_text]

[lq_centered_image image=”5044″][lq_centered_text]

Moku:Lab

Data Logger

Technical specifications

Channels
2[/lq_centered_text]

[lq_centered_text]Acquisition rate
250 kSa/s with one channel enabled
125 kSa/s with both channels enabled[/lq_centered_text]

[lq_centered_text]Input range
-5 V to 5 V[/lq_centered_text]

[lq_centered_text]Input impedance
50 Ω/1 MΩ[/lq_centered_text]

[lq_centered_text]Logging options
SD card
API data streaming[/lq_centered_text]

[lq_centered_text]Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]

Documentation

Datasheets

[/lq_centered_text]

[lq_centered_text]User manuals

[/lq_centered_text]

[lq_centered_text]Specs

[/lq_centered_text]

[lq_centered_image image=”10094″][lq_centered_text]

Moku:Go

Data Logger

Technical specifications

Channels
2[/lq_centered_text]

[lq_centered_text]Acquisition rate
1 MSa/s with one channel enabled
500 kSa/s with both channels enabled[/lq_centered_text]

[lq_centered_text]Input range
± 5 V to ± 25 V[/lq_centered_text]

[lq_centered_text]Input impedance
1 MΩ[/lq_centered_text]

[lq_centered_text]Logging options
Internal memory (8 GB)
API data streaming[/lq_centered_text]

[lq_centered_text]Software & utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]

Documentation

Datasheets

[/lq_centered_text]

[lq_centered_text]User manuals

[/lq_centered_text]

[lq_centered_text]Specs

[/lq_centered_text]

[lq_centered_text]

Featured resources

From detailed case studies featuring real-world users to comprehensive application notes that explore instrument features and functions, we offer a range of resources to help you work smarter and achieve more with the Moku Data Logger.[/lq_centered_text]

Finding dark matter among the noise with Moku:Pro

Learn how researchers are leveraging flexible data logging and Python support to fast-track event detection with minimal setup

a dark matter detector made of a dilution refrigerator and rack-mount electronics.

Revealing the “SPLENDOR” of dark matter with Moku:Pro

Learn how researchers are constructing a light dark matter detector with flexible data logging

Advancing optical clock performance with Moku:Pro

Learn how researchers at Humboldt University of Berlin and the Ferdinand-Braun-Institut are using a digital-first approach to eliminate tedious manual processes, automate essential tests, and optimize clock stability

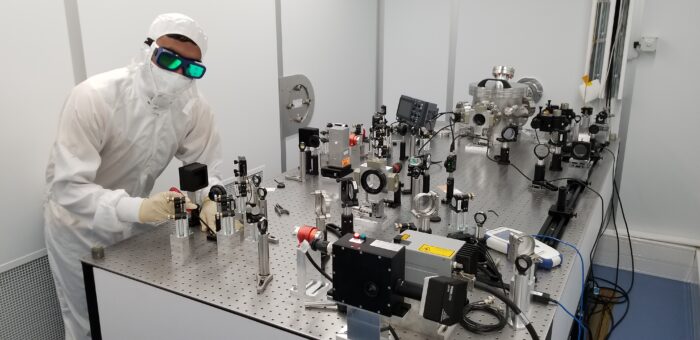

ALPS researcher with an optical table using a lock-in amplifier

Shining light through a wall: Axion detection at DESY with Moku:Lab and Moku:Pro

Learn how researchers are pushing the boundaries of particle physics with flexible, software-defined instrumentation

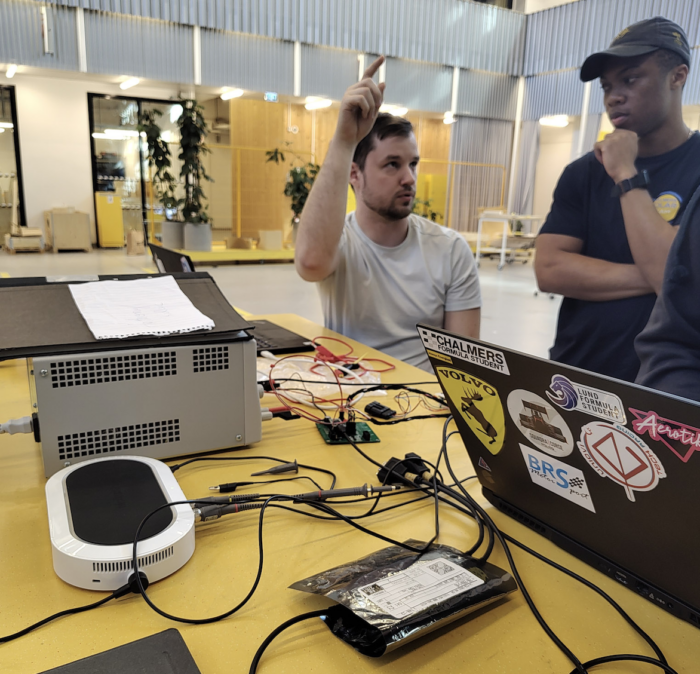

Chalmers Solar Team working with Moku:Go.

Building a sustainable, competitive solar car with Moku:Go and the Chalmers Solar Team

The student-led solar car team utilized two Moku:Go devices to perform drive testing, motor testing, and solar cell design and test.

Does your senior design project work?

Director of Product Ben Nizette shares why engineering students need the right equipment to succeed
