Arbitrary Waveform Generator

Leverage the highly versatile Moku Arbitrary Waveform Generator to generate custom waveforms with up to 65,536 points at sample rates of up to 1.25 GSa/s. For maximum flexibility to generate truly arbitrary waveforms, it’s easy to load waveforms from a file or input them as piece-wise mathematical functions with up to 32 segments. Use burst mode to trigger waveform generation from input channels with start or n cycle modes, or output waveforms with more than 250,000 cycles of dead time between pulses in pulsed mode.

[lq_centered_autoplay_video image=”6625″ video_url=”https://stage.liquidinstruments.com/wp-content/uploads/2021/06/mokupro-awg-hero.mp4″]

[lq_centered_text]The Moku Arbitrary Waveform Generator is easy to use and offers a range of advanced capabilities to optimize your experiment — at the most cost-effective price in the industry.[/lq_centered_text]

[lq_centered_text]

Key benefits

With up to four independent channels, a powerful equation editor with up to 32 segments, and the ability to generate custom waveforms with up to 65,536 points, you can expect more from the Moku Arbitrary Waveform Generator.[/lq_centered_text]

[lq_image_text_top_bottom image=”14357″]

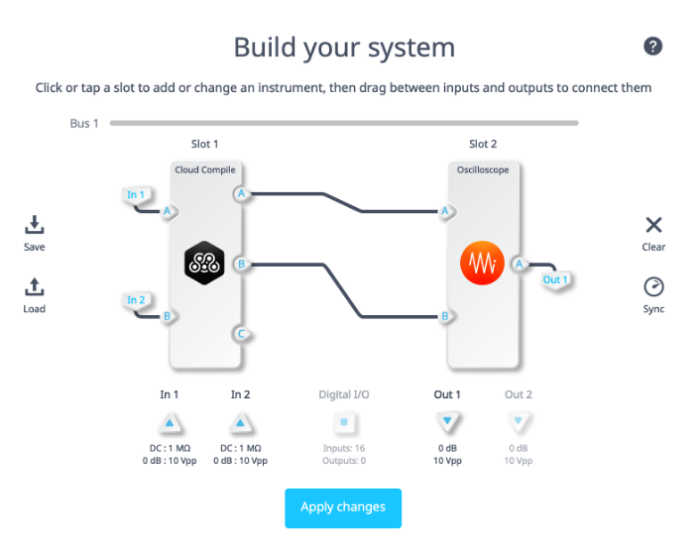

Quickly build custom waveforms with the live equation editor

Edit complex equations live and apply them instantly to your experimental setup. Choose to define the waveform with up to 32 segments. For a fully contained stimulus and response system, combine the Arbitrary Waveform Generator with Oscilloscope in Multi-instrument Mode.

[liquid-button href=”/resources/software-utilities/ipad-app/” style=”filled blue”]Try the software[/liquid-button][/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”14359″]

For total flexibility, choose from predefined or custom waveforms

Select from six predefined waveforms: sine, Gaussian, exponential rise or fall, sinc, and cardiac. It’s easy to edit waveforms as piecewise mathematical functions, or load them from a file with up to 65,536 points.[/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”14361″]

Generate phase-locked outputs to unlock greater insights

Configure output phase synchronization between the Arbitrary Waveform Generator channels. Select from normal, burst, or pulsed output with up to 250,000 cycles of dead time between pulses.[/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”14360″]

Precision meets adaptability with no sacrifices in performance

Our FPGA-based architecture delivers high-performance instrumentation that’s flexible and adaptable for a range of test needs. For deeper insights, add a DC offset to your signals with up to 100 µV precision and a phase offset with up to 0.001° precision when generating custom, arbitrary waveforms.[/lq_image_text_top_bottom]

[lq_image_text_top_bottom image=”11278″]

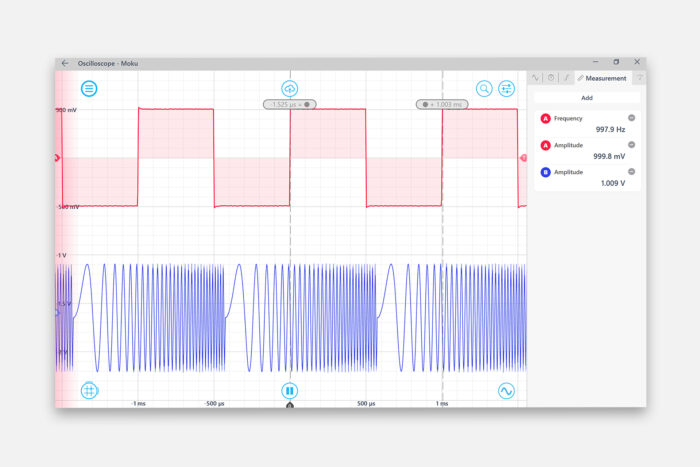

Engineered to work seamlessly with your favorite APIs

API integration with MATLAB, LabVIEW, and more allows straightforward automation of your Moku device in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or to your preferred cloud app. You can also send work to yourself or colleagues within the Moku app.[/lq_image_text_top_bottom]

[lq_centered_text]

Engineered for demanding applications

You can’t innovate for the future when your test equipment is stuck in the past. Use the Moku Arbitrary Waveform Generator to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.[/lq_centered_text]

Additive manufacturing

Cardiac waveform simulation

Quantum optics

Random pattern scanning

System response simulation

Integrates seamlessly with your tech stack

[lq_centered_text]

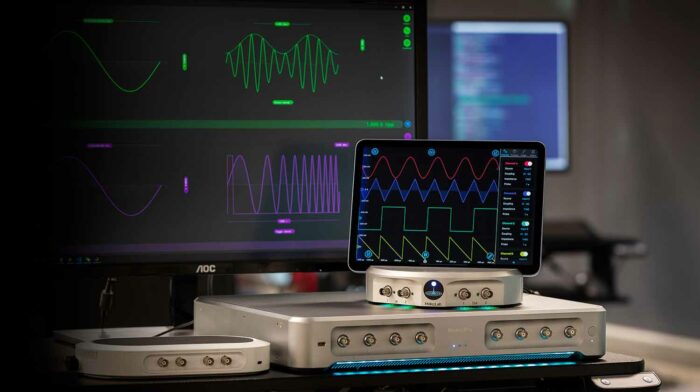

Tech specs and docs

The Moku Arbitrary Waveform Generator runs on Moku:Pro, Moku:Lab, and Moku:Go. Compare the specifications to choose the right device for your application.[/lq_centered_text]

[lq_centered_image image=”7740″]

[lq_centered_image image=”5044″]

[lq_centered_image image=”10094″]

[lq_centered_text]

Moku:Pro

[liquid-button href=”/products/hardware-platforms/mokupro/” target=”_blank” style=”filled blue”]Learn more[/liquid-button][/lq_centered_text]

[lq_centered_text]

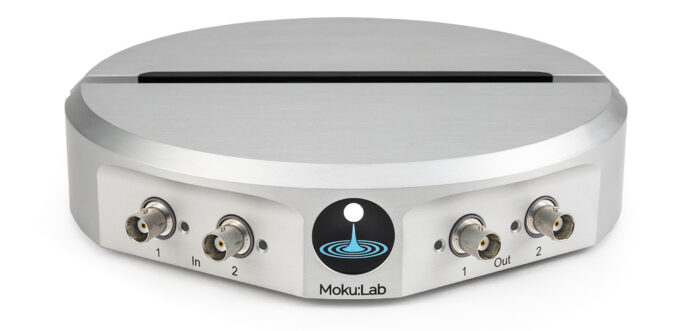

Moku:Lab

[liquid-button href=”/products/hardware-platforms/mokulab/” target=”_blank” style=”filled blue”]Learn more[/liquid-button][/lq_centered_text]

[lq_centered_text]

Moku:Go

[liquid-button href=”/products/hardware-platforms/mokugo/” target=”_blank” style=”filled blue”]Learn more[/liquid-button][/lq_centered_text]

Technical specifications

Channels

[lq_centered_text]4[/lq_centered_text]

[lq_centered_text]2[/lq_centered_text]

Maximum update rate

[lq_centered_text]1.25 GSa/s[/lq_centered_text]

[lq_centered_text]1 GSa/s[/lq_centered_text]

[lq_centered_text]125 MSa/s[/lq_centered_text]

Output bandwidth

[lq_centered_text]500 MHz[/lq_centered_text]

[lq_centered_text]300 MHz[/lq_centered_text]

[lq_centered_text]20 MHz[/lq_centered_text]

DAC resolution

[lq_centered_text]16 bits[/lq_centered_text]

[lq_centered_text]12 bits[/lq_centered_text]

Output range

[lq_centered_text]± 5 V[/lq_centered_text]

[lq_centered_text]

± 1 V

[/lq_centered_text]

[lq_centered_text]± 5 V[/lq_centered_text]

Memory depth

[lq_centered_text]65,536[/lq_centered_text]

[lq_centered_text]

65,536

[/lq_centered_text]

[lq_centered_text]65,536[/lq_centered_text]

Software & utilities

[lq_centered_text]iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]iPadOS
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

Documentation

Datasheets

User manuals

Specs

[lq_centered_image image=”7740″][lq_centered_text]

Moku:Pro

Arbitrary Waveform Generator

Technical specifications

Channels
4[/lq_centered_text]

[lq_centered_text]Maximum update rate
1.25 GSa/s[/lq_centered_text]

[lq_centered_text]Output bandwidth
500 MHz[/lq_centered_text]

[lq_centered_text]DAC resolution
16 bits[/lq_centered_text]

[lq_centered_text]Output range
± 5 V[/lq_centered_text]

[lq_centered_text]Memory depth
65,536[/lq_centered_text]

[lq_centered_text]Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]

Documentation

Datasheets

[/lq_centered_text]

[lq_centered_text]User manuals

Moku:Pro Arbitrary Waveform Generator User Manual

[/lq_centered_text]

[lq_centered_text]Specs

Moku:Pro Arbitrary Waveform Generator Specs

[/lq_centered_text]

[lq_centered_image image=”5044″][lq_centered_text]

Moku:Lab

Arbitrary Waveform Generator

Technical Specifications

Channels
2[/lq_centered_text]

[lq_centered_text]Maximum update rate
1 GSa/s[/lq_centered_text]

[lq_centered_text]Output bandwidth
300 MHz[/lq_centered_text]

[lq_centered_text]DAC resolution
16 bits[/lq_centered_text]

[lq_centered_text]Output range
± 1 V[/lq_centered_text]

[lq_centered_text]Memory depth
65,536[/lq_centered_text]

[lq_centered_text]Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]

Documentation

Datasheets

[/lq_centered_text]

[lq_centered_text]User manuals

Moku:Lab Arbitrary Waveform Generator User Manual

[/lq_centered_text]

[lq_centered_text]Specs

Moku:Lab Arbitrary Waveform Generator Specs

[/lq_centered_text]

[lq_centered_image image=”10094″][lq_centered_text]

Moku:Go

Arbitrary Waveform Generator

Technical Specifications

Channels
2[/lq_centered_text]

[lq_centered_text]Maximum update eate
125 MSa/s[/lq_centered_text]

[lq_centered_text]Output bandwidth
20 MHz[/lq_centered_text]

[lq_centered_text]DAC resolution
12 bits[/lq_centered_text]

[lq_centered_text]Output range
± 5 V[/lq_centered_text]

[lq_centered_text]Memory depth
65,536[/lq_centered_text]

[lq_centered_text]Software & utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW[/lq_centered_text]

[lq_centered_text]

Documentation

Datasheets

[/lq_centered_text]

[lq_centered_text]User manuals

Moku:Go Arbitrary Waveform Generator User Manual

[/lq_centered_text]

[lq_centered_text]Specs

Moku:Go Arbitrary Waveform Generator Specs

[/lq_centered_text]
