Hardware platforms
Three software-defined hardware platforms designed to bring flexibility to your lab with the specs required.[/lq_page_hero][lq_image_text_top_bottom image=”8088″][/lq_image_text_top_bottom]
[lq_gray_wave_separator]
Compare specifications to decide which hardware platform will best suit your lab, company, or classroom.
[lq_centered_image image=”8245″][lq_centered_text]
[lq_centered_text]Starting at $599
[lq_centered_text]Dimensions
[lq_centered_text]Weight
[lq_centered_text]Analog Inputs
[lq_centered_text]Analog Outputs
[lq_centered_text]Digital I/O
[lq_centered_text]Programmable Power Supply
[lq_centered_text]Software & Utilities
[lq_centered_text]Additional Ports
[lq_centered_text]Available Instruments
[lq_centered_text]Moku:Go starts at $599

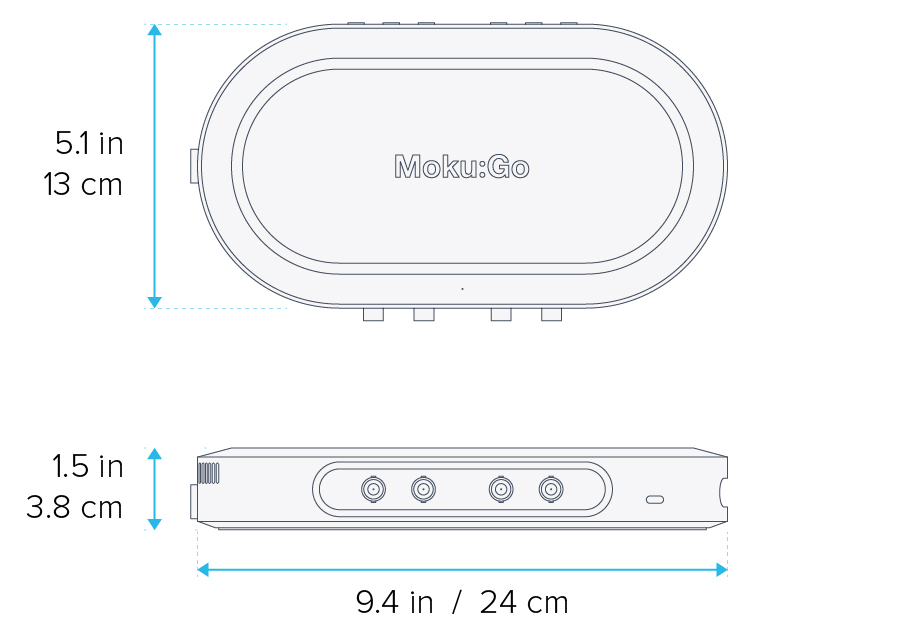

Moku:Go
The engineering platform that fits in a backpack[/lq_centered_text]
Learn more[/lq_centered_text]
[/lq_centered_text]
1.7 lb / 750 g[/lq_centered_text]
Two 12-bit, 125 MSa/s input channels
30 MHz analog bandwidth
AC or DC coupling with 1 MΩ impedance
Input range up to ± 25 V[/lq_centered_text]
Two 12-bit, 125 MSa/s output channels
20 MHz analog bandwidth
± 5 V maximum output range[/lq_centered_text]
16-channel DIO at 125 MSa/s
Supports 3.3 V logic (5 V tolerant)[/lq_centered_text]
Up to four channels[/lq_centered_text]
Windows, macOS, iPadOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks Live Scripting[/lq_centered_text]
USB-C
Magnetic Power Port
Optional Ethernet Port
Kensington Lock Port[/lq_centered_text]
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Logic Analyzer / Pattern Generator
Oscilloscope / Voltmeter
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator[/lq_centered_text]
Learn more[/lq_centered_text]
[lq_centered_image image=”5044″][lq_centered_text]
[lq_centered_text]Starting at $5,000
[lq_centered_text]Dimensions
[lq_centered_text]Weight
[lq_centered_text]Analog Inputs
[lq_centered_text]Analog Outputs
[lq_centered_text]Digital I/O
[lq_centered_text]Programmable Power Supply
[lq_centered_text]Software & Utilities
[lq_centered_text]Additional Ports
[lq_centered_text]Available Instruments
[lq_centered_text]Moku:Lab starts at $5,000

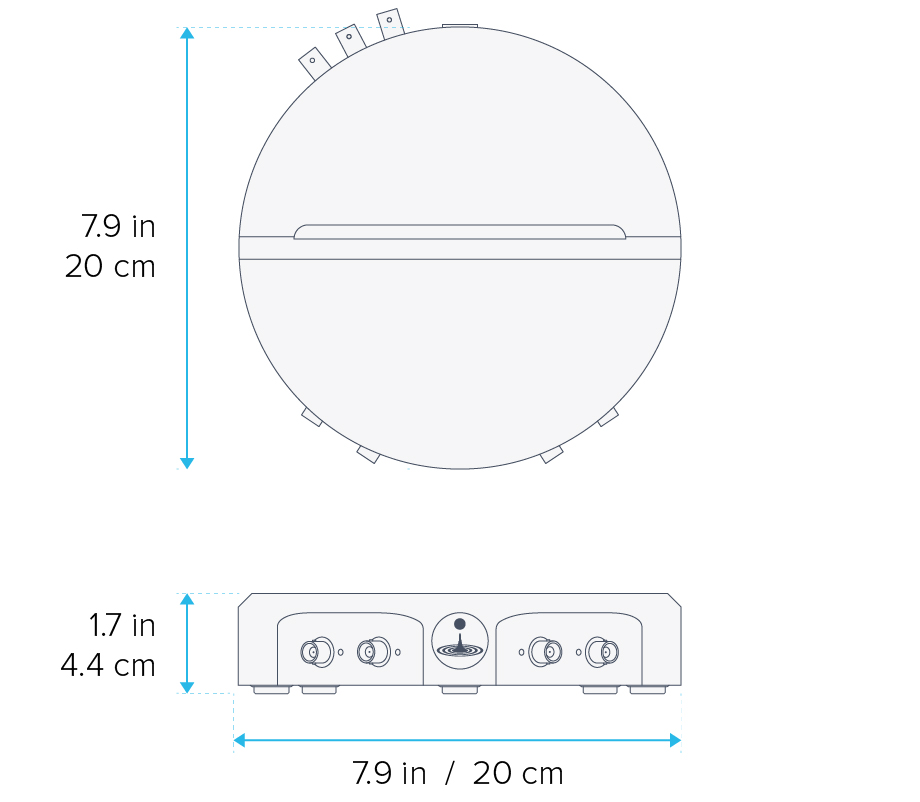

Moku:Lab
The complete platform for engineering and research[/lq_centered_text]
Learn more[/lq_centered_text]
[/lq_centered_text]
3.5 lb / 1.6 kg[/lq_centered_text]
Two 12-bit, 500 MSa/s input channels
200 MHz analog bandwidth
AC or DC coupling with 50 Ω / 1 MΩ switchable impedance
Input range ± 5 V[/lq_centered_text]
Two 16-bit, 1 GSa/s output channels
300 MHz analog bandwidth
± 1 V into 50 Ω output range[/lq_centered_text]
Dedicated TTL trigger port[/lq_centered_text]
N/A[/lq_centered_text]
Windows, macOS, iPadOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks Live Scripting[/lq_centered_text]
USB Mini B
SD Card Slot
Ethernet Port
Kensington Lock Port[/lq_centered_text]
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Logic Analyzer / Pattern Generator
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator[/lq_centered_text]
Learn more[/lq_centered_text]
[lq_centered_image image=”7740″][lq_centered_text]
[lq_centered_text]Starting at $15,000
[lq_centered_text]Dimensions
[lq_centered_text]Weight
[lq_centered_text]Analog Inputs
[lq_centered_text]Analog Outputs
[lq_centered_text]Digital I/O
[lq_centered_text]Programmable Power Supply
[lq_centered_text]Software & Utilities
[lq_centered_text]Additional Ports
[lq_centered_text]Available Instruments
[lq_centered_text]Moku:Pro starts at $15,000

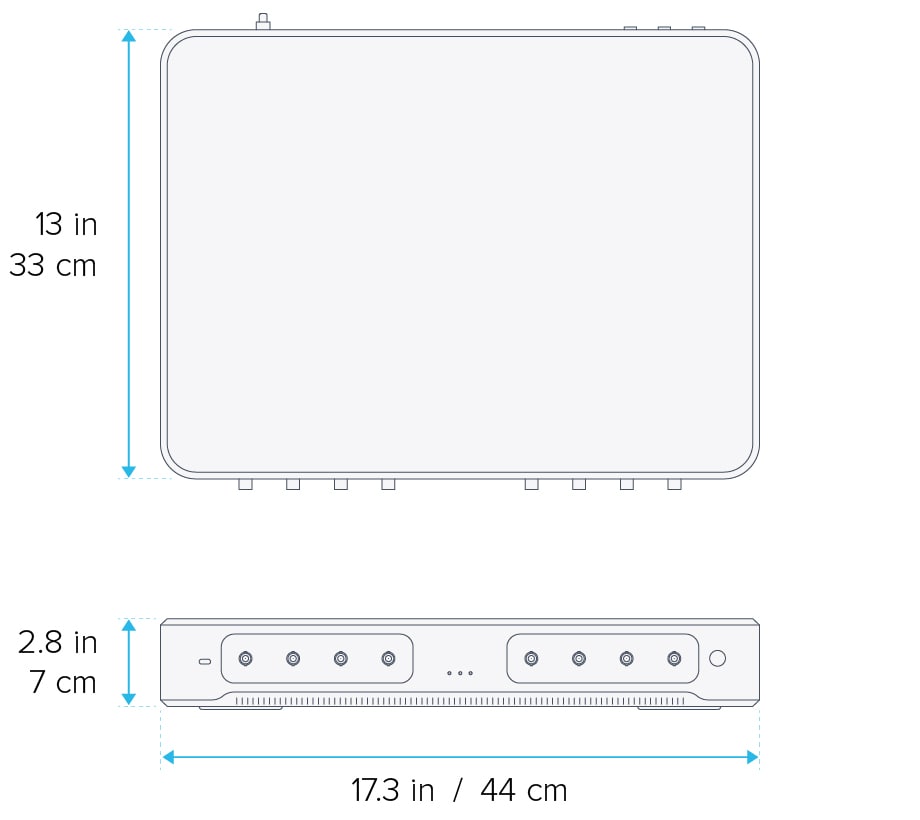

Moku:Pro
The most powerful platform for your research[/lq_centered_text]
Learn more[/lq_centered_text]
[/lq_centered_text]
14.77 lb / 6.7 kg[/lq_centered_text]
Four 10+18-bit, 5 GSa/s input channels
600 MHz analog bandwidth
AC or DC coupling with 50 Ω / 1 MΩ switchable impedance
Input range up to ± 20 V[/lq_centered_text]
Four 16-bit, 1.25 GSa/s output channels
500 MHz analog bandwidth
± 5 V into 50 Ω output range[/lq_centered_text]
Dedicated TTL trigger port[/lq_centered_text]
N/A[/lq_centered_text]
Windows, macOS, iPadOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks Live Scripting[/lq_centered_text]
USB-C
10 MHz reference clock in and out
Ethernet Port[/lq_centered_text]
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyzer
Laser Lock Box
Lock-in Amplifier
Logic Analyzer / Pattern Generator
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyzer
Waveform Generator[/lq_centered_text]
Learn more[/lq_centered_text]
