Moku:Pro

Description

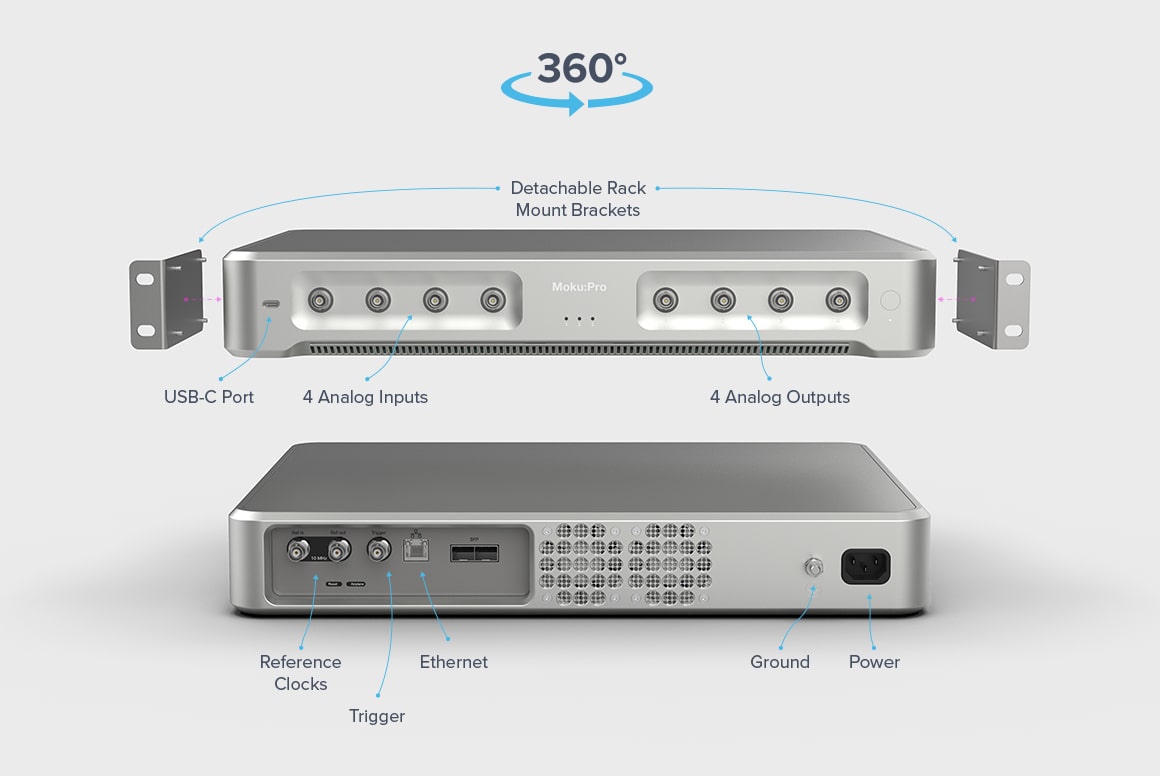

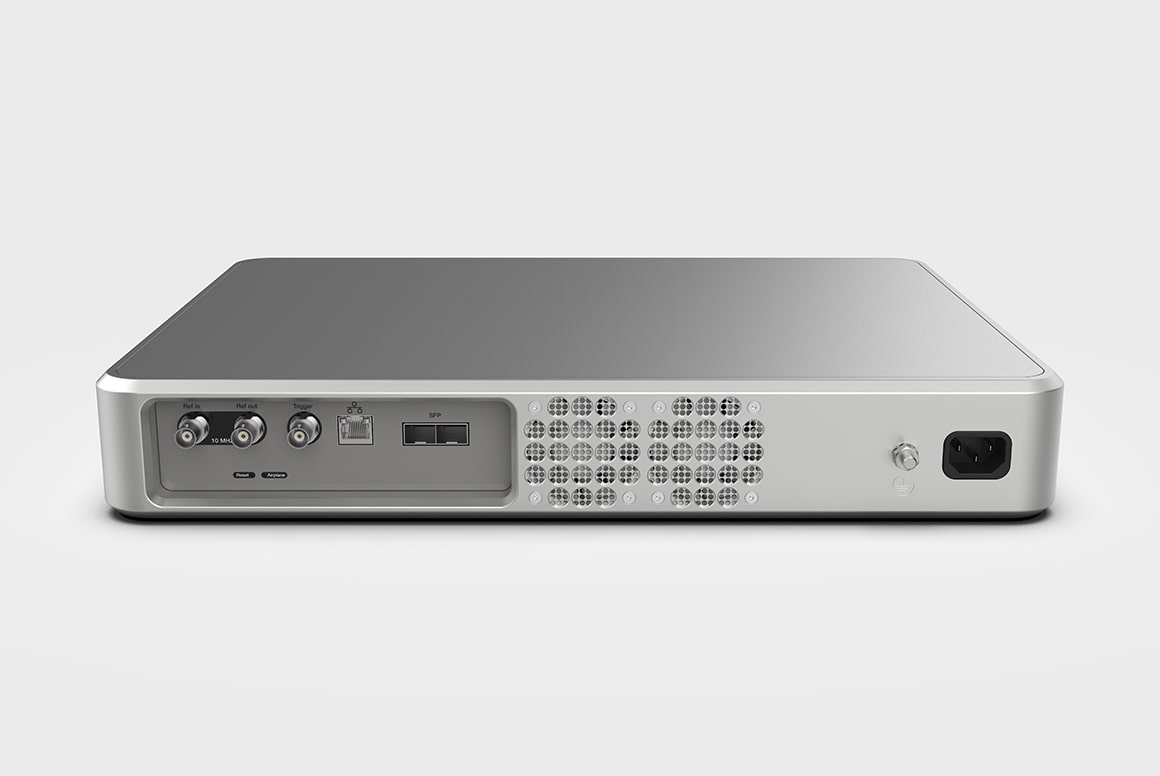

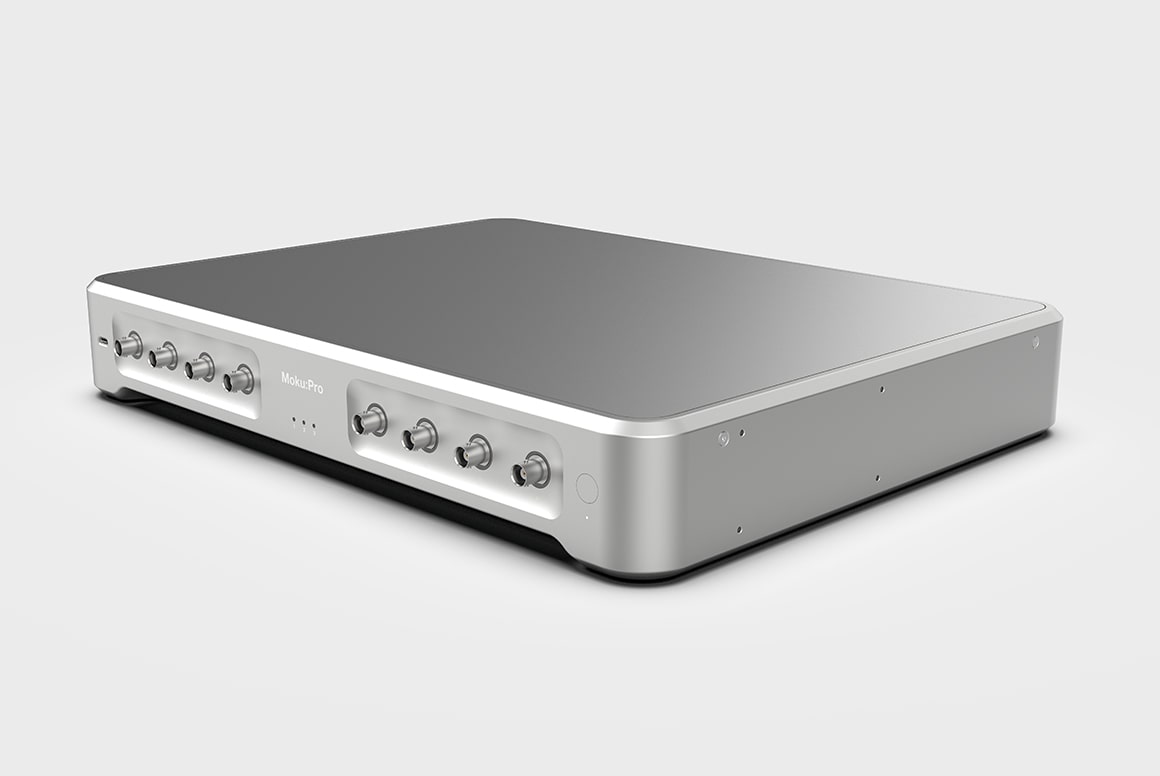

Moku:Pro is a flexible, high-performance, software-defined hardware platform, bringing you up to 13 powerful instruments in one benchtop device. A powerful Xilinx Ultrascale+ FPGA is coupled with a high-bandwidth analog front end and robust networking and storage to maximize flexibility and performance. The Moku:Pro suite of software-defined instruments supports high-speed data acquisition, processing and visualization, waveform generation, and real-time control applications.

Inputs
Four DC to 600 MHz, up to 5 GSa/s

Outputs
Four DC to 500 MHz, 1.25 GSa/s

Impedance
50 Ω / 1 MΩ

Input coupling
AC / DC

Input voltage noise
Better than 30 nV/√Hz at 100 Hz

Timebase accuracy
Better than 300 ppb

Typically ships within 1 week
