Moku Cloud Compile

Develop and deploy custom functions and features in minutes, not months

Code, compile, and deploy directly from your browser. Moku Cloud Compile makes FPGA programming simple with the ability to implement custom functionality to Moku:Go, Moku:Lab, and Moku:Pro.

[liquid-button href=”https://compile.liquidinstruments.com/” style=”filled blue” target=”_blank”]Start coding[/liquid-button]

Real-world applications

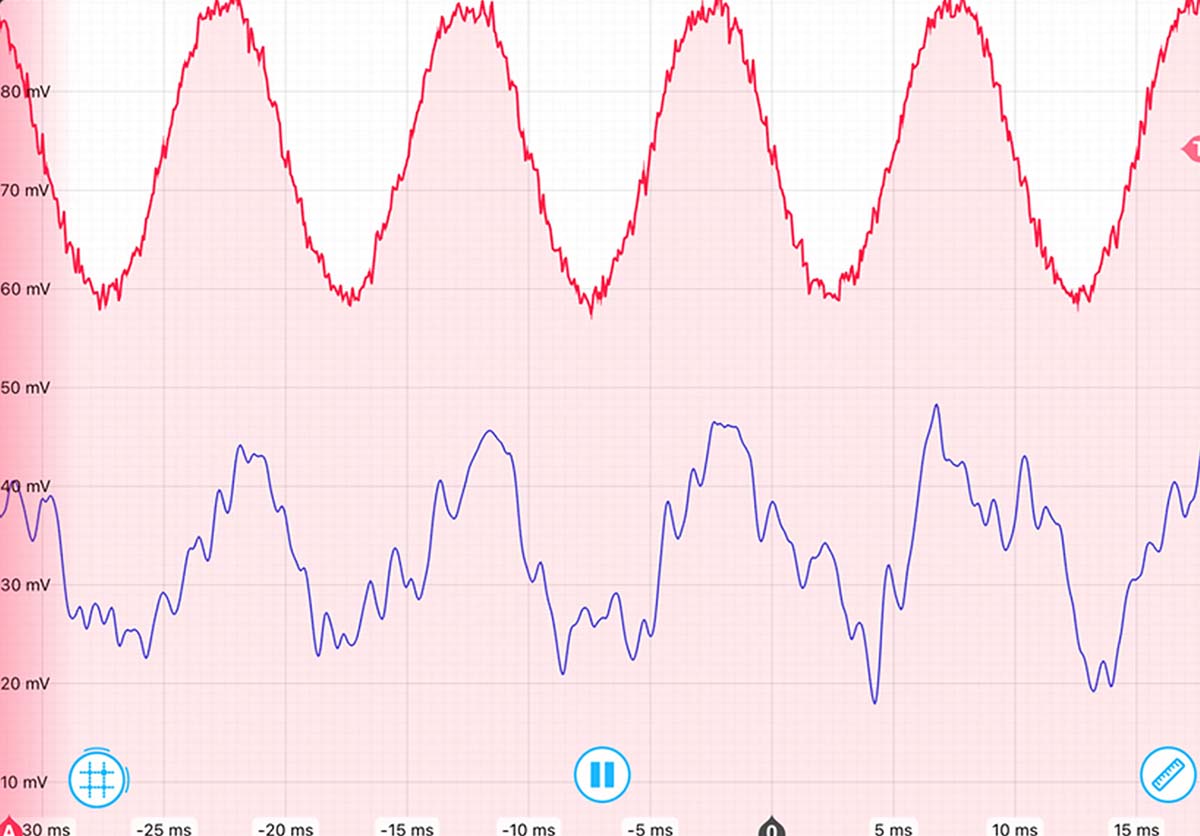

Boxcar averager

Lock-in amplifiers and boxcar averagers are commonly used to extract weak, repetitive signals that are buried in noise. A boxcar averager is designed to gate the input signal in the time domain to improve the signal to noise ratio.

Learn more >

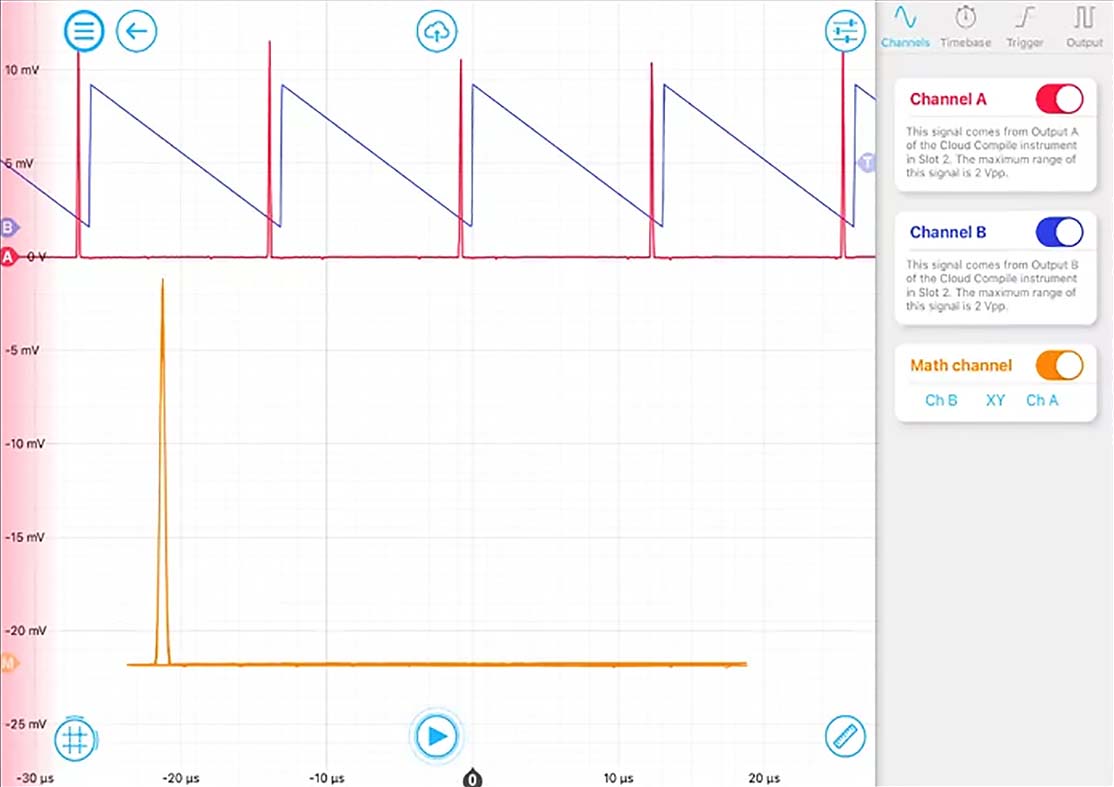

Two-channel real-time cross correlation

Cross-correlation is a common algorithm used to perform time delay analysis between two signals. This operation can be efficiently performed on an FPGA chip in the frequency domain.

Learn more >

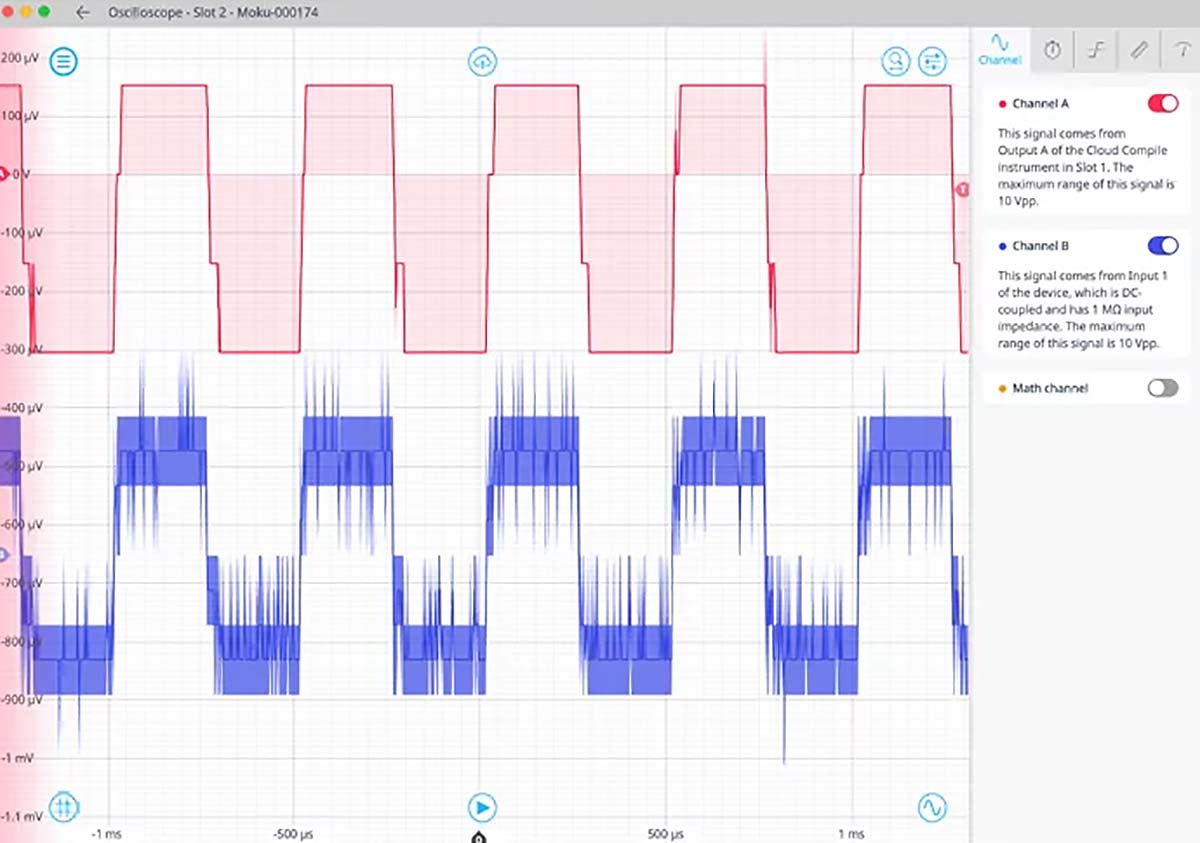

Moving average filter

A moving average filter is relatively simple to implement. Yet it is nearly ideal for removing random, white noise from signals.

Learn more >

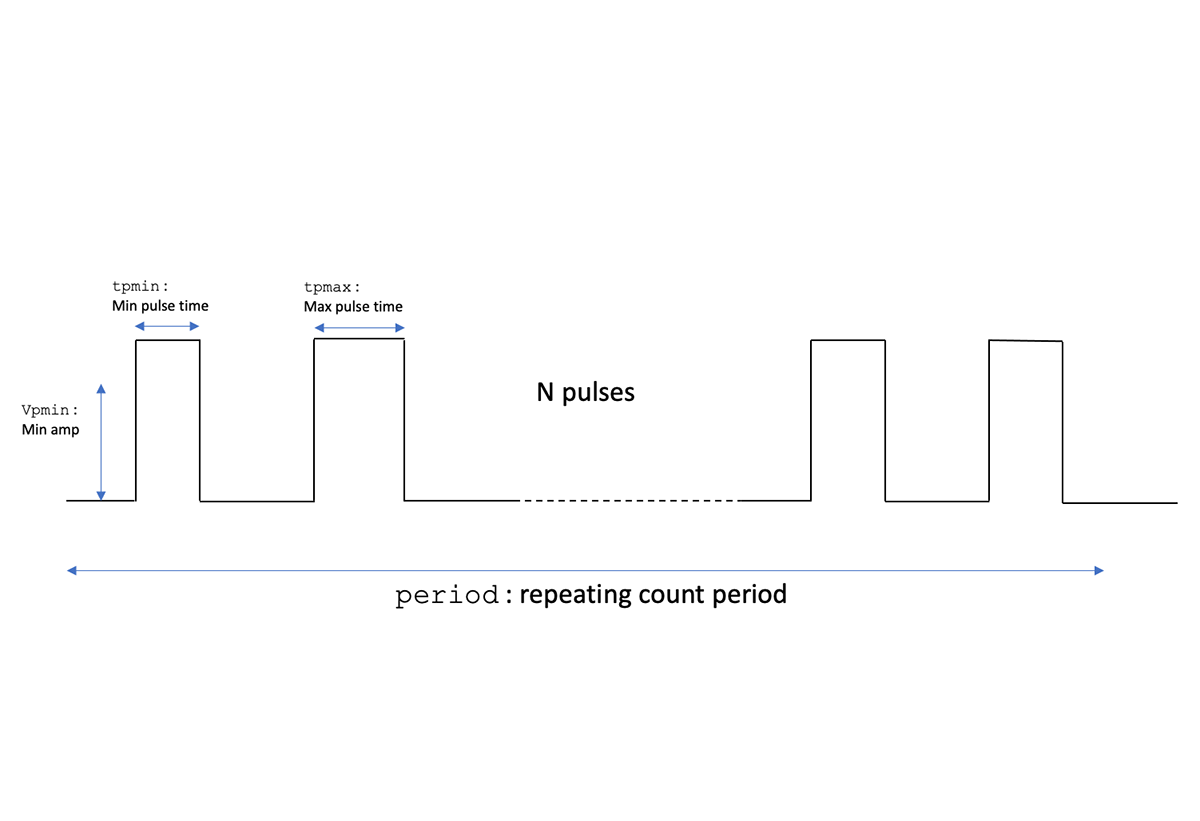

Event counter

A windowed event counter with programmable thresholds has applications in communications optics such as single photon detectors (SPD).

Learn more >

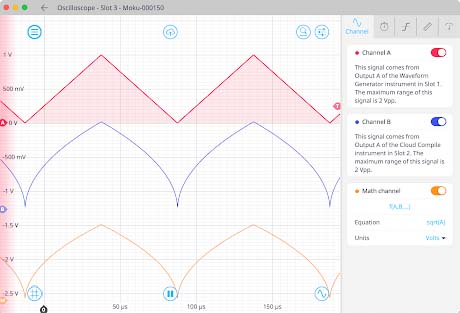

Square root

Compute the square root of an incoming signal’s amplitude. Drive the square root to an analog output.

Learn more >

[lq_centered_text]

Advanced capabilities, simple workflow

[/lq_centered_text][lq_image_text image=”12246″ image_position=”Right”]

It’s easy to get started

Simply write your code using a web browser, compile it in the cloud, and deploy the bitstream to one or more Moku devices in the app. You can write your code in HDL, start with one of our examples, or work with compatible tools like Simulink or MATLAB and HDL Coder.

To begin using MathWorks HDL Coder, check out our app note.

[liquid-button href=”https://stage.liquidinstruments.com/blog/2021/10/05/cloud-compile-with-mathworks-hdl-coder/” style=”filled blue”]Read the app note[/liquid-button][/lq_image_text][lq_image_text image=”10958″]

Preconfigured to be hardware-deployable

Since all inputs, outputs, and interfaces are preconfigured, it’s easy to interact with real-world signals. This means no more working with development boards, writing drivers for ADCs, or configuring complex interfaces. Combine with Multi-instrument Mode to deploy alongside other instruments to stimulate, analyze, or augment your custom design.

Browse our resource library to learn how to simplify setup and deployment.

[liquid-button href=”https://compile.liquidinstruments.com/docs/” style=”filled blue” target=”_blank”]Learn more[/liquid-button][/lq_image_text][lq_image_text image=”10957″ image_position=”Right”]

Compatible with industry-standard HDL

Accelerate your projects with an unprecedented level of customization using industry-standard VHDL. You can deploy bitstreams directly to Moku:Pro, Moku:Lab, or Moku:Go and have your custom feature running in minutes.

Schedule a call with us so we can help you get started.

[liquid-button href=”/request-product-demo/” style=”filled blue”]Request a demo[/liquid-button][/lq_image_text]

[lq_centered_text]

You’re in good company

[/lq_centered_text][testimonials_slider_wrapper][testimonials_slide]

No software installations required

“From opening the box, I just pulled the code up and it only took me 15 minutes to implement this. So I was very happy with this — it was amazing.”

-Noah Kurinsky, SLAC National Accelerator Laboratory[/testimonials_slide][testimonials_slide]

Greater flexibility in test than ever before

“Previously this would have taken us months to years to accommodate all of our unique requirements, but now with Moku Cloud Compile, it’s weeks to days.”

-Global aerospace company[/testimonials_slide][testimonials_slide]

Design, deploy, and test on one device

“We love the Moku platform because we can reduce the system footprint and the cost while still meeting our performance requirements.”

-Defense contractor[/testimonials_slide][/testimonials_slider_wrapper]

[lq_centered_text]

FAQ

[/lq_centered_text]

How does Moku Cloud Compile work?

Moku Cloud Compile allows you to deploy custom DSP directly onto the Moku:Go, Moku:Lab, or Moku:Pro FPGA in Multi-instrument Mode. Write code using a web browser and compile it in the cloud; download and deploy the bitstream to your Moku device through the app.

We offer a range of resources to help you get started with Moku Cloud Compile. Explore the resources here.
What is HDL?

HDL, or hardware description language, refers to a family of programming languages used to describe digital logic circuits and program FPGAs. The most commonly used hardware description languages are VHDL and Verilog. We currently support VHDL, with Verilog support coming soon.
How long does it take to compile?

Although the total compilation time depends on the number of users engaged in the tool simultaneously, compilation can complete in as quickly as 15 minutes.
What hardware platforms is Moku Cloud Compile compatible with?

Currently Moku Cloud Compile is available on Moku:Pro, Moku:Lab, and Moku:Go running Multi-instrument Mode.

[lq_centered_text]

Get started with Moku Cloud Compile

[liquid-button href=”https://compile.liquidinstruments.com/docs/” target=”_blank” style=”filled white”]Start coding[/liquid-button][/lq_centered_text]
